Dual Wireless PIR Motion Activated Audio Player for Outdoor Use Weatherproof Sound Player Triggered by Two Wireless PIR Detectors (FNM-803-WL)

Features

1. Weatherproof and dustproof, suitable for outdoor purposed application scenarios.

2. The device body of the audio player is made of zinc alloy, rugged and durable.

3. Adopts two wireless PIR motion sensors / detectors with waterproof cover.

   -Flexible to install without wires.

   -Each sensor can trigger the audio player, once it detects a moving person or a moving big animal (≥25Kg).

   -Triggering interval is 5s (The motion that happened less than 5s after the first motion will not trigger the audio player).

4. The detection distance of the wireless PIR motion sensor is up to 12 meters.

5. Built-in high quality MP3 player with 8MB flash memory.

6. Built-in class D 20Watts amplifier and the sound quality is great.

7. Load single MP3 file or multiple MP3 files onto the player on PC through USB connection.

   -It'll be detected as a USB flash drive on PC. No need any program/software.

8. Optional to play a sound in order or in random after each activation when multiple files available.

9. Sound volume is adjustable through turning the volume knob at the bottom of the device.

10. It comes with an AC to DC power adapter.


Technical Parameters

1. Working Voltage: 12-24V DC

2. Working Current: ≥2000mA

3. Standby Current: ≤10mA

4. Audio Format: MP3 (bit rate: 8-192Kbps)

5. Audio Output Power: ≤20Watts

6. Detection Range: ≤12m (110 ° angle)

7. Radio Frequency: 433.92MHz

8. Wireless RF Distance: ≥150m (open area)

9. Operating Temperature: -10℃ to +50℃

10. Protection rating: IP65


Dimensions

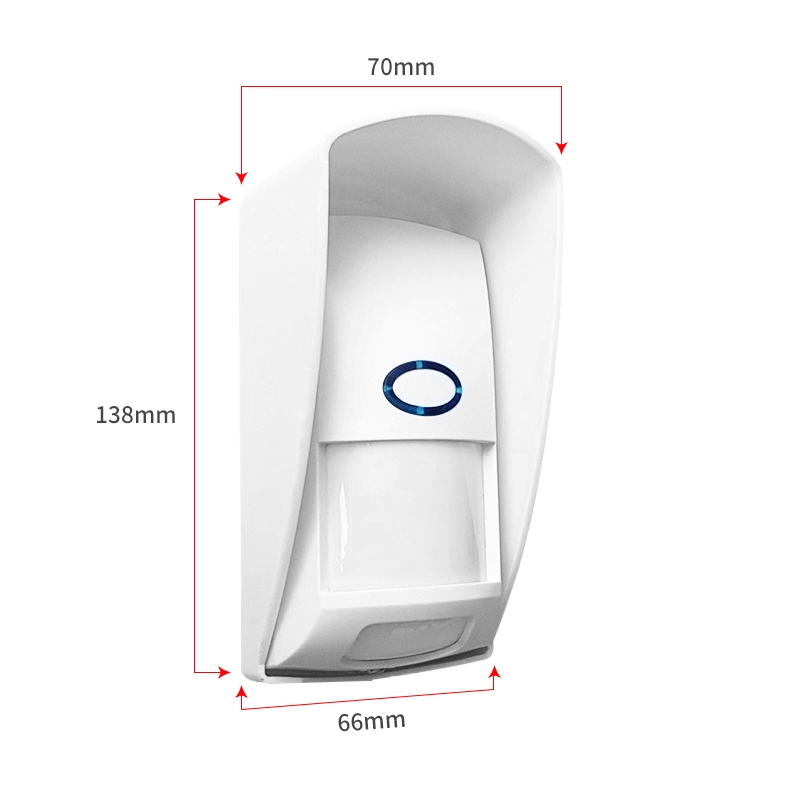

1. Wireless PIR Motion Sensor

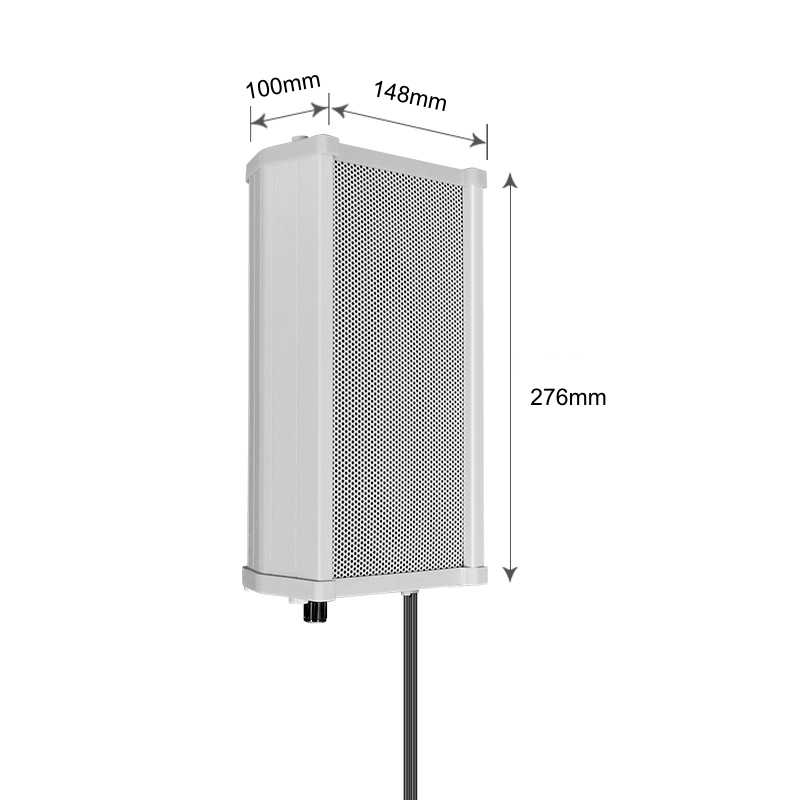

2. Audio Player



Easy to Update Audio Files

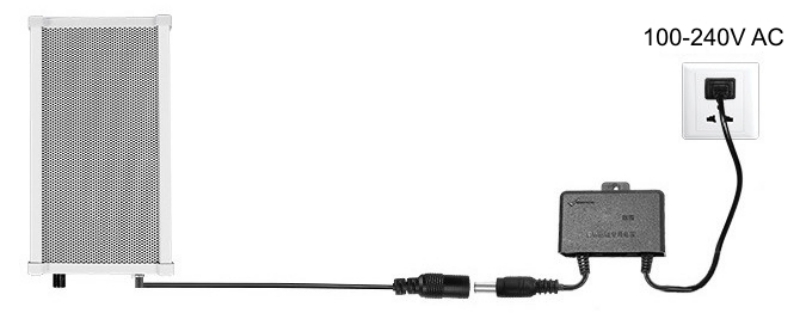

Example of Connection with a Power Supply

working with a AC to DC power adaptor_副本.jpg


Installation

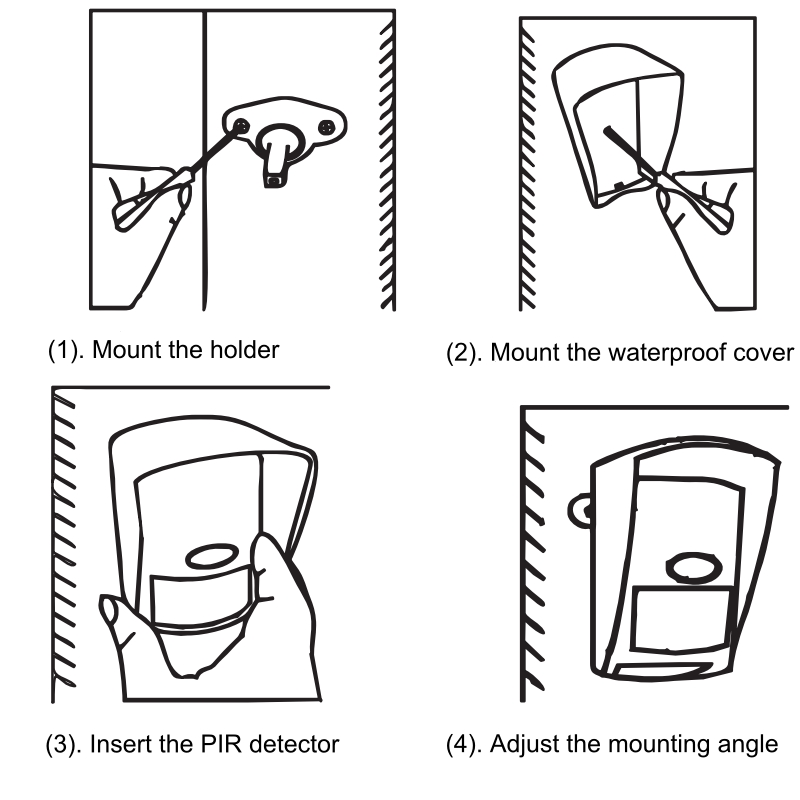

1. Wireless PIR Motion Sensor


Notes:

1). Before mounting the sensor, please refer to the operation guide in the package box of the sensor to install the 2 x AA batteries first.

2). The location of the sensor should avoid direct sunlight.


2. Audio Player
